Irrigation Engineering (Lab) CE-407

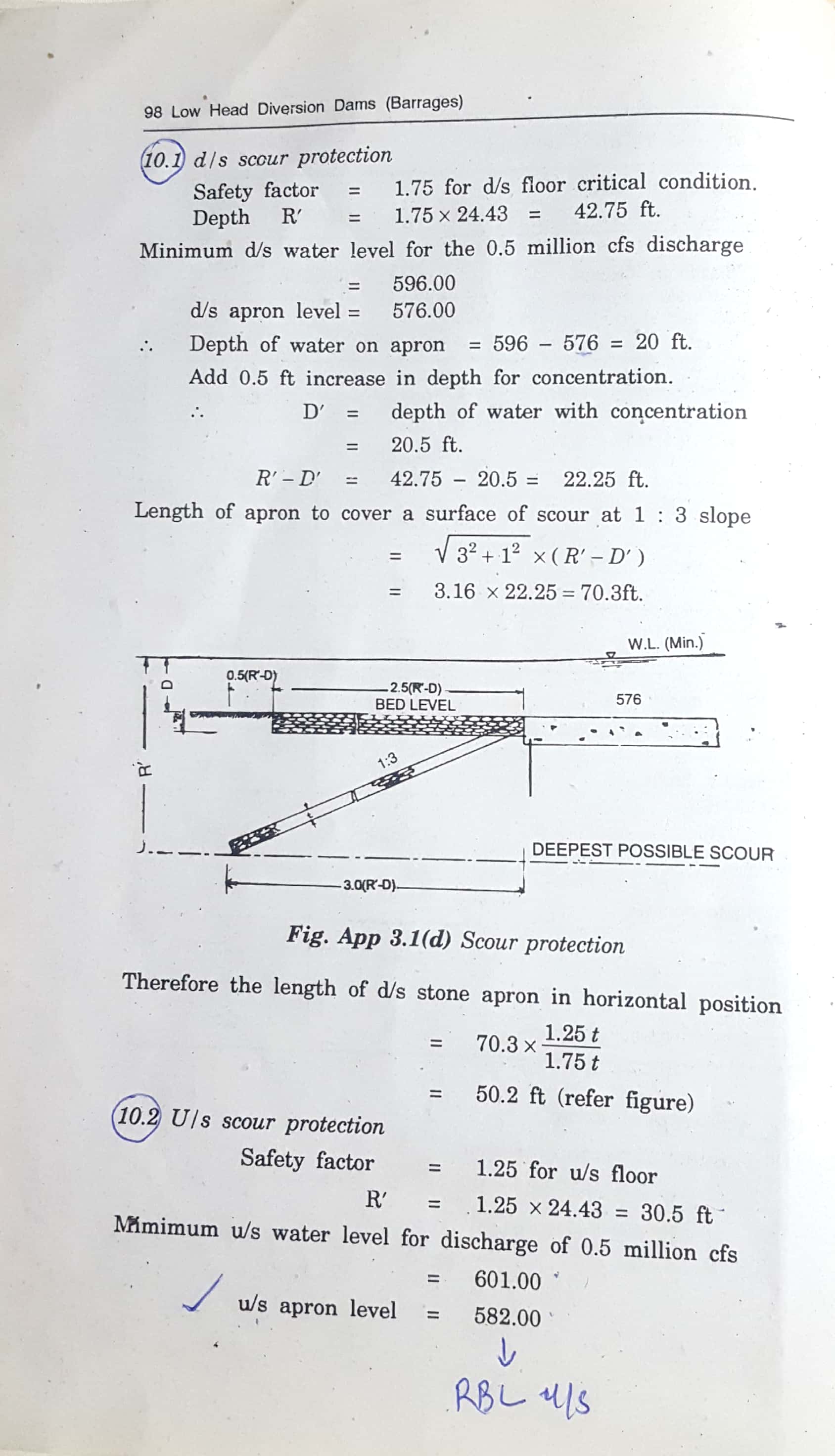

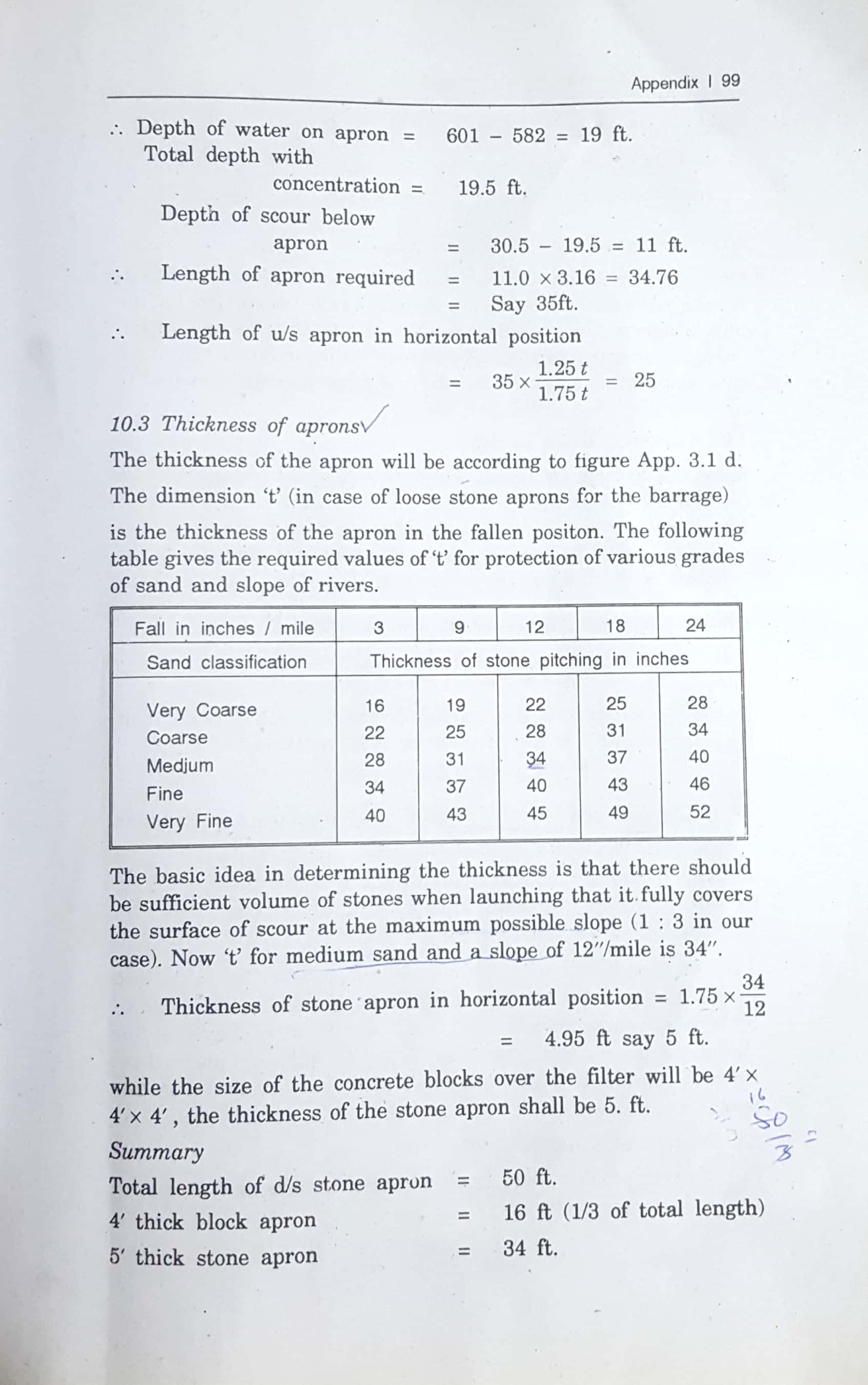

Calculation of Scour Protection,Inverted Filter & Thickness of Apron

Calculation of Scour Protection,Inverted Filter & Thickness of Apron

Download Files





PREV

NEXT

Course Material
  • Introduction to Barrages
  • Design of barrage for Over- Flow condition
  • Discharge curves & design of Undesluices
  • Fixation of Water levels, Energy Levels & downstream Floor
  • Fixation of downstream Floor Level/undersluices using blench,conjugate and crumps' method
  • Calculation of Scour Protection,Inverted Filter & Thickness of Apron
  • Design of subsurface Flow Condition(Exit Gradient,Uplift Pressure)
  • khosla's method of independent variables for uplift Pressure
  • Uplift Pressure corrections using khosla's Method
  • Floor Thickness for barrage
  • Chapters 10
  • Department Civil Engineering
  • Teacher Engr. Muhammad Owais
